THGBMTG5D1LBAIL

Introduction

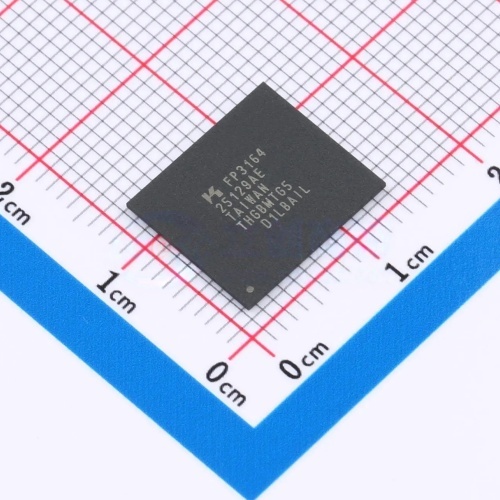

THGBMTG5D1LBAIL is an 8GB eMMC (Embedded Multi-Media Card) embedded flash memory chip manufactured by Toshiba (now Kioxia Corporation). As part of Toshiba's TG5 series, it utilizes MLC (Multi-Level Cell) NAND flash technology and complies with eMMC 4.41 or eMMC 5.0 standards (depending on firmware version). Integrating NAND flash dies and a controller in a single package, it provides a standard MMC/SD interface, making it ideal for smartphones, tablets, automotive infotainment systems, and IoT devices.

Important Note: This model features a 153-ball FBGA (Fine-pitch Ball Grid Array) package, a common storage solution for early smartphones (2013–2017) and Android TV boxes. As Toshiba’s memory business was acquired by Bain Capital and rebranded as Kioxia, new batches may carry the Kioxia logo—but the model code and specifications remain fully compatible.

Key Features

Core Specifications

• Capacity: 8GB (typically stacked with 2x 4GB NAND dies).
• Flash Type: MLC (Multi-Level Cell)—offers 2x higher endurance (3000–10000 P/E cycles) than consumer-grade TLC.
• Interface: eMMC 4.41 / 5.0 (backward compatible with MMC 4.3/4.2).
• Bus Width: Supports 8-bit (default) or 4-bit data bus; maximum transfer rates up to 200 MB/s (read) / 50 MB/s (write) (speed-grade dependent).
• Operating Voltage: 3.3V (VCC/VCCQ, ±10% tolerance); some versions support 1.8V VCCQ for high-speed modes.

Performance & Architecture

• Integrated Controller: High-performance controller with hardware ECC (Error Correction Code), wear leveling, and bad block management for reliability.
• Partition Support:
  • Boot Area: Two dedicated partitions for system startup (Boot 1/Boot 2).
  • RPMB (Replay Protected Memory Block): Secure storage for encryption keys or sensitive data.
  • General Purpose Area: User data storage (up to 7.8GB usable space).
• Security: Hardware write protection (WP), permanent write protection (PWP), and erase group protection.
• Power Management: Sleep Mode (ultra-low power) and Standby Mode for battery-powered devices.

Package & Reliability

• Package: 153-ball FBGA with 0.65mm ball pitch; compact footprint (~11.5mm × 13mm).

• Operating Temperature:

  • Commercial Grade: -25°C to +85°C (ambient).
  • Industrial Grade: -40°C to +85°C (available in select variants).

• Endurance: MLC flash delivers 3000–10000 Program/Erase (P/E) cycles—ideal for write-intensive applications (e.g., dashcams, logging).

Typical Specification Table

Typical Applications

• Mobile Devices:
  • Smartphones/tablets (system/storage drive—common in mid-to-low-end models like Samsung Galaxy J series, Xiaomi Redmi/Meizu devices from 2013–2017).
  • MP3/MP4 players (portable media storage).
• Automotive:
  • Car navigation/infotainment systems (stores maps, OS, and media).
  • Dashcams (high-speed video loop recording).
• Industrial & IoT:
  • Industrial gateways/HMI (embedded system boot and data storage).
  • Smart home hubs (configuration/log storage).
  • POS terminals (transaction data logging).
• Consumer Electronics:

  • Android TV boxes/sticks (e.g., early Amazon Fire TV Stick, Xiaomi Mi Box).

  • Set-top boxes (firmware and app storage).

Development & Design Notes

1. PCB Layout:
   • Signal Integrity: For high-speed modes (HS200/HS400), data lines (DAT0–DAT7) and clock (CLK) require 50Ω single-ended impedance control and strict length matching (error < 50mil—refer to eMMC timing specs).
   • Power Decoupling: Place 10µF + 0.1µF decoupling capacitors as close as possible to the VCC pin to suppress noise.
2. Boot Configuration:
   • Supports booting from Boot Area 1 or Boot Area 2—configure via strap pins or software commands.
   • Connect the RST_n (Reset) pin to the SoC’s reset circuit for reliable startup.
3. Voltage Compatibility:
   • While the main supply is 3.3V, VCCQ (I/O voltage) may need 1.8V for HS200/HS400 modes. Verify your SoC’s MMC controller voltage compatibility—use a level shifter if needed.
4. Thermal Management:
   • Heat dissipation relies on PCB copper. Add thermal vias under the FBGA package and pour copper on the bottom layer to improve heat dissipation.
5. Lifetime Management:
   • Even with MLC endurance, implement wear leveling and over-provisioning (10–20% reserved space) in software for write-intensive applications (e.g., dashcams) to avoid premature flash wear.
6. Data Recovery:

   • The chip supports hardware encryption (RPMB). Directly dumping NAND flash may yield unreadable data—use specialized tools (e.g., PC-3000) to parse encrypted partitions.
