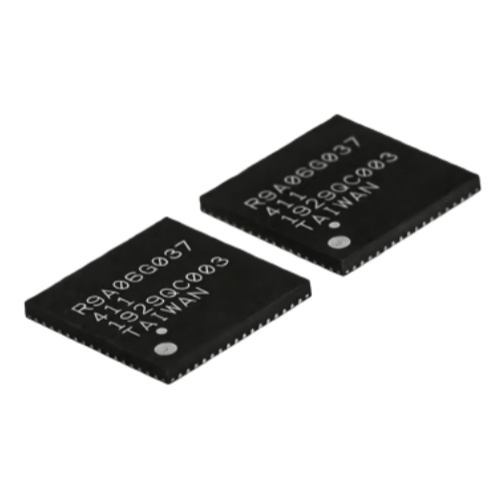

R9A06G037GNP#AA0 is a high-performance 32-bit microprocessor with ARM Cortex-A9 core launched by Renesas Electronics, belonging to the RZ/A1LU product group of the RZ/A1 series. It features a maximum operating frequency of 400MHz with excellent processing performance for complex data and graphic operations. The chip integrates 1MB on-chip SRAM, and is equipped with rich peripheral interfaces (Ethernet, UART, SPI, I²C, CAN, USB 2.0 OTG, etc.), a dedicated LCD controller (LCDC), 12-bit ADC, multi-functional timer units, DMA controller and power management module. It supports a wide operating voltage range and an industrial temperature range of -40°C to +85°C, packaged in a 256-pin BGA. It is suitable for embedded application scenarios with requirements for graphic display, high-speed communication and multi-task processing such as industrial human-machine interface, smart industrial equipment, IoT gateways and intelligent control terminals.

32-bit ARM Cortex-A9 CPU core, maximum operating frequency of 400MHz, supports high-speed multi-task processing On-chip 1MB high-speed SRAM, supports external memory expansion for flexible storage configuration Integrated dedicated LCD controller (LCDC), supports various graphic display interfaces and resolution adaptation On-chip 12-bit ADC with multiple channels, supporting analog signal acquisition for industrial sensing Communication interfaces: Ethernet, UART, SPI, I²C, CAN, USB 2.0 OTG, enabling multi-channel high-speed data transmission Built-in DMA controller, reducing CPU load and improving data transmission efficiency Multi-functional timer units with PWM output, supporting timing and control of industrial actuators Comprehensive power management architecture, supporting multiple low-power modes for energy efficiency optimization Operating temperature: -40°C to +85°C, adapted to harsh industrial and outdoor application environments 256-pin BGA package, compliant with lead-free environmental protection standards, compact layout for high integration High-reliability design: built-in error correction code (ECC), watchdog timer and voltage monitoring circuit Supports multiple industrial communication protocols, easy for secondary development and system integration

Industrial human-machine interface (HMI) and touch screen control terminals Smart industrial control equipment (PLC, industrial gateway, motion controller) IoT gateways and edge computing nodes for industrial internet of things Smart meter main control units with graphic display (three-phase smart electricity meters, integrated energy meters) Intelligent building automation control terminals (central control panels, intelligent lighting control) Medical equipment with display interfaces (portable diagnostic instruments, medical monitoring equipment) Smart home central control hubs and high-end intelligent appliance main control Vehicle-mounted auxiliary control terminals and industrial vehicle intelligent control systems Industrial sensor data acquisition and processing terminals Communication equipment interface control and protocol conversion modules
