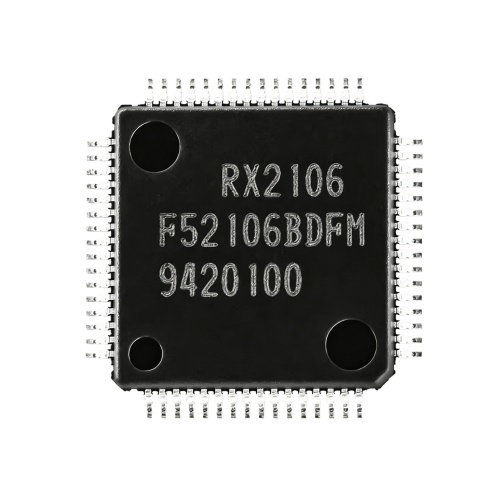

R5F52106BDFP#10

Introduction

Key Features

• 32-bit RXv1 CPU core, maximum operating frequency of 50MHz, processing performance of 78 DMIPS
• On-chip 256KB program flash and 32KB RAM, supporting data flash function
• Wide voltage range: 1.62V~5.5V, adaptable to various power supply environments
• On-chip 12-channel 12-bit ADC and 2-channel 10-bit DAC, supporting high-precision analog signal acquisition and output
• Communication interfaces: multiple serial communication interfaces including UART/SCI, I²C, SPI and CAN, supporting up to 15 communication channels
• Multi-functional timer unit: 8-bit×4-channel and 16-bit×10-channel timers, supporting PWM output
• Built-in Event Link Controller (ELC), enabling inter-peripheral linkage without CPU intervention
• Comprehensive power management: supporting multiple low-power modes to reduce system energy consumption
• High-reliability design: built-in watchdog timer, oscillation stop detection, voltage monitoring and CRC calculation unit
• Operating temperature: -40°C to +85°C, adaptable to harsh industrial environments
• 100-pin LFQFP package, compliant with lead-free environmental protection standards, providing 84 I/O pins

Typical Applications

• Industrial automation control systems (PLC, sensor nodes, motion control)
• Main control units of metering equipment such as smart electricity/water/gas meters
• Control boards for smart home appliances (high-end washing machines, refrigerators, air conditioners, etc.)
• Medical instruments (blood pressure monitors, blood glucose meters, portable diagnostic equipment)
• Building automation and security systems (access control, monitoring, lighting control)
• Interface control and protocol conversion modules for communication equipment
• Battery Management Systems (BMS) and controllers for new energy equipment
• Intelligent control units for consumer electronics (audio equipment, smart home terminals)
