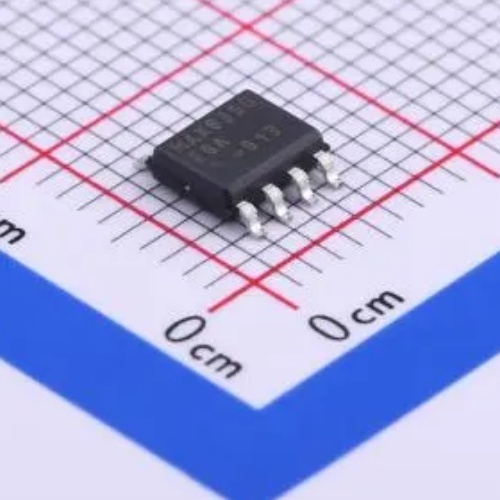

MAX6350ESA+T

MAX6350ESA+T is a precision dual-voltage microprocessor supervisor from Analog Devices, featuring ±0.5% threshold accuracy, programmable reset timeout (1 ms–1.5 s), power-fail warning (PFI), and low 2.5 µA quiescent current in an 8-pin SOIC package. Designed for industrial, medical, and automotive applications requiring deterministic power sequencing, reliable brownout protection, and functional safety compliance.
  • MAX6350ESA+T,MAX6350ESA+T,OTOMO

Description

MAX6350ESA+T is a precision, low-power, dual-voltage microprocessor supervisory circuit designed and manufactured by Analog Devices Inc. (following its acquisition of Maxim Integrated). It belongs to the high-reliability MAX63xx family, engineered for applications demanding guaranteed power-up/power-down sequencing, accurate voltage monitoring, and robust reset assertion — especially in industrial control, medical electronics, automotive subsystems, and mission-critical embedded systems. The “ESA” suffix denotes the 8-pin SOIC package (150 mil width), widely adopted for ease of assembly and thermal performance; the “+T” indicates tape-and-reel packaging (2,500 units per reel), Pb-free, and RoHS-compliant.

Introduction

The MAX6350ESA+T integrates two independent, highly accurate voltage monitors with programmable reset thresholds, adjustable reset timeout delay, and power-fail detection — all in a single 8-pin SOIC. Its primary function is to ensure microcontroller (MCU) or digital system reliability by:
  • Generating a clean, glitch-free active-low reset signal (RESET) during power-up, brownout, or supply instability;
  • Providing an early warning power-fail (PFI) output that asserts before RESET — enabling safe data save, shutdown sequencing, or controlled state transition;
  • Supporting dual-supply systems (e.g., 3.3 V core + 5 V I/O) with independent monitoring of two distinct voltage rails.
Key differentiators include:
🔹 Ultra-precise threshold accuracy: ±0.5% over temperature (–40°C to +85°C) — significantly tighter than standard ±2% supervisors, eliminating need for external trimming;
🔹 Adjustable reset timeout: 1 ms to 1.5 s via external capacitor (CT), supporting fast-boot MCUs or slow-ramping power supplies;
🔹 Low quiescent current: only 2.5 µA (typ.), enabling use in battery-backed or always-on monitoring circuits;
🔹 No external components required for basic operation — unlike many competitors, it needs no pull-up resistors or external comparators.
The device operates from 2.7 V to 5.5 V, supports both push-pull and open-drain RESET outputs, and features internal hysteresis (īŊž0.5% of threshold) to prevent chatter near trip points. Its compact SOIC-8 footprint and proven field reliability make it ideal for space-constrained, high-integrity designs where every volt and millisecond matters.

Key Features

✅ Dual Independent Voltage Monitors:
 • Monitor two separate supply rails (e.g., VCC and VIO) simultaneously;
 • Programmable thresholds: VTH1 = 2.32 V / 2.63 V / 2.93 V / 3.08 V / 4.00 V / 4.38 V / 4.63 V, and VTH2 = 2.32 V / 2.63 V / 2.93 V / 3.08 V / 4.00 V / 4.38 V / 4.63 V — selected via pin strapping (no external resistors needed).
✅ Precision Reset Generation:
 • RESET output asserts when either monitored voltage falls below its threshold;
 • Guaranteed ±0.5% threshold accuracy (–40°C to +85°C);
 • Adjustable reset timeout: 1 ms to 1.5 s, set by external capacitor on CT pin (CT = 10 nF → īŊž100 ms);
 • RESET pulse width guaranteed > 140 ms (min) at VCC = 3.0 V — exceeds most MCU requirements.
✅ Power-Fail Warning (PFI):
 • PFI asserts before RESET — typically when supply drops to īŊž95% of threshold (e.g., 2.93 V → 2.78 V);
 • Enables critical actions: EEPROM save, graceful shutdown, flagging, or backup power switchover;
 • PFI has same accuracy and hysteresis as main monitor.
✅ Low-Power & Robust Operation:
 • Quiescent current: 2.5 µA (typ.), 10 µA (max) — suitable for battery-buffered real-time clocks or always-on wake-up logic;
 • Operating voltage: 2.7 V to 5.5 V;
 • ESD rating: > 4 kV HBM on all pins;
 • Junction temperature range: –40°C to +125°C.
✅ Flexible Output Configuration:
 • RESET pin supports push-pull (active-low) or open-drain modes — selectable via RSEL pin;
 • PFI pin is open-drain — allows wired-OR with other fault signals;
 • No external pull-ups required in push-pull mode — reduces BOM and layout complexity.
✅ Industrial-Grade SOIC-8 (ESA) Package:
 • Standard 150-mil SOIC footprint — compatible with legacy PCBs and automated assembly;
 • High thermal mass improves stability under transient load conditions;
 • RoHS-compliant, halogen-free, and qualified per AEC-Q100 stress tests.

Typical Specification Table

Parameter Specification
Manufacturer Analog Devices Inc. (formerly Maxim Integrated)
Product Series MAX63xx Family (Precision Supervisory Circuits)
Model MAX6350ESA+T
Function Dual-Voltage Microprocessor Supervisor
Number of Monitored Rails 2 (independent, pin-selectable thresholds)
Threshold Options (each) 2.32 V, 2.63 V, 2.93 V, 3.08 V, 4.00 V, 4.38 V, 4.63 V
Threshold Accuracy ±0.5% (–40°C to +85°C)
Reset Timeout Range 1 ms to 1.5 s (externally adjustable via CT)
RESET Pulse Width (min) 140 ms (at VCC = 3.0 V)
PFI Assertion Point īŊž95% of selected threshold (with hysteresis)
Quiescent Current 2.5 µA (typ.), 10 µA (max)
Supply Voltage Range 2.7 V to 5.5 V
Output Types RESET: push-pull or open-drain; PFI: open-drain
Operating Temperature –40°C to +125°C (junction)
Package 8-Lead SOIC (150 mil, ESA)
RoHS / Green Yes (Pb-free, Halogen-free)
Packaging Tape-and-Reel (T), 2,500 units per reel (+T)

Typical Applications

🔹 Industrial PLCs & HMIs: Ensuring deterministic startup and brownout recovery across multiple supply domains (e.g., 3.3 V FPGA core, 5 V I/O, 24 V field interface) — leveraging dual monitoring and precise timing.
🔹 Medical Devices: Patient monitors, infusion pumps, and diagnostic equipment — where guaranteed reset behavior, low power, and long-term reliability are mandated by IEC 62304 and ISO 13485.
🔹 Automotive Body Electronics: Door modules, lighting controllers, and infotainment power management — using PFI to initiate safe shutdown before battery undervoltage resets the MCU.
🔹 Battery-Powered IoT Nodes: Remote sensors and edge devices — combining ultra-low IQ (2.5 µA) with dual-rail supervision to extend shelf life and enable graceful low-battery response.
🔹 Telecom & Networking Equipment: Line cards, baseband units, and optical modules — requiring tight voltage tolerance and fast, chatter-free reset during hot-swap or power cycling.
🔹 High-Reliability Embedded Systems: Avionics test fixtures, railway signaling, and energy metering — where ±0.5% accuracy eliminates calibration drift and ensures compliance with SIL-2 functional safety targets.

Development & Design Notes

🔧 Threshold Selection & Pin Strapping:
  • Thresholds are selected by connecting TH1/TH2 pins to GND, VCC, or leaving floating — refer to Table 1 in datasheet for exact combinations. Example: TH1 = GND, TH2 = VCC → VTH1 = 2.32 V, VTH2 = 4.38 V.
  • Use 0603 or 0402 1% thin-film resistors for pull-up/down if noise immunity is critical (e.g., in motor-driven environments).
🔧 Reset Timeout (CT) Design:
  • CT sets timeout via tRESET ≈ 1.1 × RINT × CT, where RINT ≈ 1 MΩ (internal). For 100 ms: CT ≈ 100 nF (X7R, 10 V).
  • Place CT within 5 mm of CT pin and bypass with 100 pF to GND — prevents noise-induced false timeouts.
🔧 PCB Layout Best Practices:
  • Keep TH1/TH2 input traces short and away from switching nodes or clock lines; add 100 pF capacitor from each threshold pin to GND for filtering (optional but recommended in noisy environments).
  • Route RESET and PFI outputs directly to MCU reset and interrupt pins — avoid stubs or long traces that could pick up noise.
🔧 Power-Fail (PFI) Usage Guidance:
  • Connect PFI to an MCU GPIO interrupt (with debouncing in firmware) to trigger immediate action: e.g., save volatile data to FRAM/EEPROM, disable outputs, or assert backup power.
  • For systems with backup batteries, use PFI to enable a power-switching MOSFET before RESET asserts — ensuring zero-gap holdup.
🔧 Reliability & Functional Safety:
  • MAX6350 is FIT-rated at 16 failures per billion hours, with full FMEDA report available from ADI — simplifies IEC 61508 SIL-2 or ISO 26262 ASIL-B certification.
  • To meet SIL-2: combine PFI event logging + RESET assertion verification in host firmware, and monitor supply rail continuity using external ADC sampling (redundant check).
