K4F8E3S4HD-MGCLTJP

Introduction

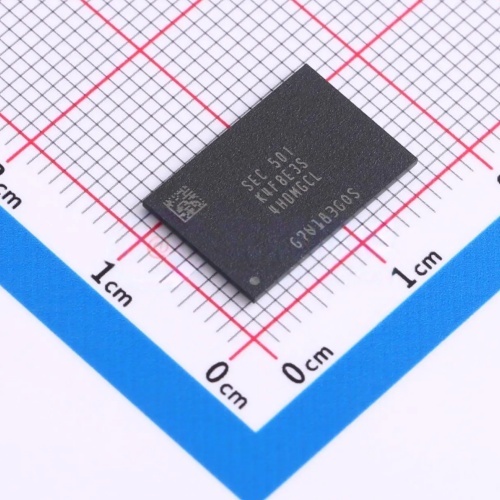

K4F8E3S4HD-MGCLTJP is a high-performance 8 Gb (1 GB) LPDDR4 (Low Power Double Data Rate 4) SDRAM chip manufactured by Samsung Electronics. As part of the premium K4F series, it utilizes Samsung's advanced 1y-nm process technology to deliver a perfect balance of high bandwidth, ultra-low power consumption, and enhanced reliability. With a 32-bit data width (x32), it supports data rates up to 4266 Mbps, making it ideal for power-sensitive high-performance applications.

The suffix "MGCL" denotes the specific speed grade and voltage configuration (1.8V/1.1V/0.6V), while the "TJP" suffix typically indicates a specific packaging configuration (Tape & Reel) or a customer-specific revision code for automated assembly lines. This chip is widely used in flagship smartphones, high-end tablets, automotive infotainment systems, and AI edge computing devices where battery life and processing speed are critical.

Important Note: Based on Samsung's official product lifecycle status, the base model K4F8E3S4HD-MGCL has been marked as Discontinued (as of 2025). The "TJP" variant is likely a Last Time Buy (LTB) batch or a specialized version produced for specific legacy projects. Designers should verify stock availability and consider migrating to newer LPDDR4X or LPDDR5 solutions for new designs.

Key Features

Core Performance

• High Density: 8 Gb (1 GB) capacity, organized as 256M x 32 (256 Megawords x 32-bit I/O).
• High Speed: Supports a maximum data transfer rate of 4266 Mbps (PC4-34100 equivalent), enabling ultra-fast data processing for 4K video, AI, and gaming.
• Low Power: Operates at multi-voltage rails (1.8V / 1.1V / 0.6V) with deep power-down modes, significantly reducing power consumption in standby and active modes compared to LPDDR3.
• High Bandwidth: Achieves a peak bandwidth of 17.0 GB/s per chip.

Advanced Architecture & Reliability

• Process Technology: Built on 1y-nm (1J) process technology, offering higher density and better performance per watt than older generations.
• Signal Integrity:
  • On-Die Termination (ODT): Integrated ODT improves signal quality by matching impedance on the PCB.
  • Write CRC & Parity: Features Write Cyclic Redundancy Check (CRC) and parity checking for command/address buses to enhance system reliability.
• Refresh Management: Supports Temperature Compensated Self-Refresh (TCSR) and Auto Self-Refresh (ASR) to optimize power consumption based on temperature.
• Training Features: Supports Write Leveling and Read Leveling for fly-by topology to compensate for signal skew.

Package & Environmental Specifications

• Package: 200-ball FBGA (Fine-pitch Ball Grid Array) with a ball pitch of 0.5mm or 0.65mm. The compact footprint is suitable for high-density mobile designs.
• Temperature Range: Commercial Grade: -25°C to +85°C (Ambient). (Note: Industrial grade versions may exist but are rare for this specific suffix).
• RoHS Compliant: Lead-free and halogen-free.

Typical Specification Table

Typical Applications

• High-Performance Mobile:
  • Flagship Smartphones & Phablets: Used as the main system memory (often paired with another 8Gb chip for 2GB/4GB total) in high-end models requiring 4K video recording and heavy multitasking.
  • Premium Tablets: Provides fast storage for offline content and complex OS running.
• Automotive & IoT:
  • Advanced Driver Assistance Systems (ADAS): Handles high-speed sensor data processing and real-time decision making.
  • Automotive Infotainment: Stores high-definition map data and runs complex navigation/media software.
  • AI Edge Devices: Provides high-speed memory for AI model parameters and real-time inference in drones and smart cameras.
• Consumer Electronics:
  • VR/AR Headsets: Supports high-frame-rate rendering and low-latency tracking.
  • Ultra-thin Laptops: Used in compact form factors where space and power efficiency are paramount.

Development & Design Notes

1. PCB Layout:
   • Impedance Control: Strict control of 50Ω single-ended and 100Ω differential impedance for DQ, DQS, CK, and CA signals is mandatory for speeds >4000 Mbps.
   • Length Matching: Data group (DQ) must be matched with Strobe (DQS) within ±5mil. Address/Command (CA) must be length-matched to the Clock (CK).
   • Layer Stack-up: Recommended 8-layer or 10-layer board with solid ground planes to minimize crosstalk and EMI.
2. Power Integrity:
   • LPDDR4 is sensitive to voltage noise. Place decoupling capacitors (0.1µF, 1µF, 10µF) as close as possible to the VDD/VDDQ/VDD2 pins.
   • Ensure clean power sequencing: 1.8V -> 1.1V -> 0.6V to prevent latch-up.
3. Thermal Management:
   • Although power consumption is low, the 200-ball FBGA package generates heat during high-speed bursts. Ensure adequate thermal vias under the package.
4. Initialization:
   • The memory controller must execute a strict power-up sequence, including ZQ calibration (impedance matching) and write/read leveling training, to ensure stable operation at 4266 Mbps.
5. Migration Warning:
   • Since this part is Discontinued, for new designs, consider migrating to K4U series (LPDDR4X) or K3KL series (LPDDR5) which offer better power efficiency and higher densities. The K4U6E3S4AB-MGCL (16Gb LPDDR4x) is a common pin-compatible or functional alternative depending on the controller.
