FM25V05-G (TR)

Introduction

The FM25V05-G (TR) is a 512 Kbit (64 KB) Ferroelectric Random Access Memory (FRAM) chip manufactured by Infineon Technologies (formerly Ramtron, acquired by Cypress/Infineon). It is part of the industry-standard FM25V series, which is designed as a direct, high-performance replacement for traditional serial EEPROMs (like the 24C series).

Unlike Flash or EEPROM, FRAM uses ferroelectric technology to store data, offering ultra-high write endurance and instantaneous write speeds (no write delay). The suffix "(TR)" indicates that the part is supplied in Tape & Reel packaging for automated SMT assembly. The "G" suffix typically denotes a specific process revision or green/RoHS-compliant version. This chip is widely used in applications requiring frequent data logging or non-volatile storage with the speed of RAM.

Key Features

Core Technology & Performance

• Memory Type: FRAM (Ferroelectric RAM). Combines the non-volatility of ROM with the high-speed write capability of RAM.
• Capacity: 512 Kbit (64 KB), organized as 65,536 x 8 bits.
• Interface: SPI (Serial Peripheral Interface) compatible (Mode 0 and Mode 3).
  • Clock Speed: Up to 20 MHz (standard) or 40 MHz (depending on voltage).
  • Instant Write: No write cycle delay; data is written immediately during the SPI transfer.
• Endurance: 100 Trillion (10^14) Read/Write Cycles. This is 1,000,000 times higher than standard EEPROM (10^6 cycles) and 10,000 times higher than Flash.
• Data Retention: 10 years at 85°C (non-volatile).

Low Power & Reliability

• Operating Voltage: 1.8V to 3.6V wide range.
  • Low Voltage Operation: Fully functional down to 1.8V (ideal for battery-powered devices).
• Power Consumption:
  • Active Current: ~1.5 mA (at 1 MHz).
  • Standby Current: < 5 µA.
• Security: Hardware Write Protection (WP) pin to prevent accidental data corruption.
• Robustness: High resistance to electromagnetic interference (EMI) and radiation (soft-error immune).

Package

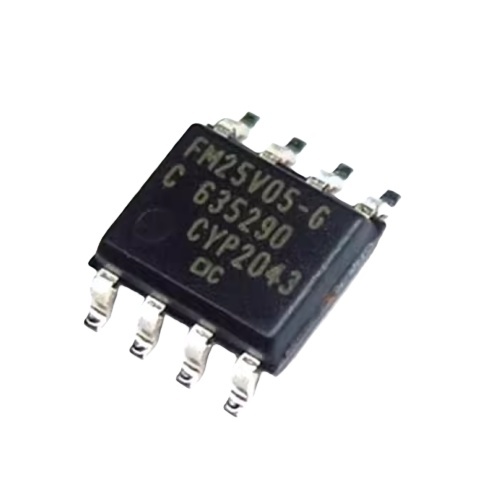

• Package: 8-pin SOIC (Small Outline Integrated Circuit) or 8-pin WSON (Very Very Thin Small Outline No-Lead), depending on the specific "G" revision.
• Temperature Range:
  • Industrial Grade: -40°C to +85°C (Standard for FM25V05).
  • Automotive Grade: Available in specific AEC-Q100 qualified versions (check specific suffix).

Typical Specification Table

Typical Applications

• Industrial Automation:
  • Data Logging: Storing sensor data (vibration, temperature, pressure) in real-time without wearing out the memory.
  • PLC & CNC: Storing configuration parameters and machine state that change frequently.
• Smart Metering:
  • Electricity/Gas/Water Meters: Recording cumulative usage data. FRAM is ideal because it allows frequent updates without the risk of data loss during power failure (unlike SRAM) and without the wear-out of EEPROM.
• Consumer Electronics:
  • Wearables & IoT: Storing user settings, event logs, and calibration data in fitness trackers and smart home devices.
  • Audio/Video: Storing user presets and configuration data in set-top boxes and car stereos.
• Medical Devices:
  • Patient Monitors: Storing vital sign history and device calibration logs. The high reliability is critical for medical applications.
• Automotive:
  • Black Box / Event Data Recorders (EDR): Recording crash data and vehicle status. The high endurance ensures the memory survives thousands of write cycles.
  • Infotainment: Storing radio presets and user profiles.

Development & Design Notes

1. SPI Bus Interface:
   • CS (Chip Select): Active LOW. Must be pulled HIGH via a resistor (10kΩ - 100kΩ) when not in use to prevent accidental activation.
   • Signal Levels: The input logic thresholds are compatible with both 3.3V and 1.8V logic, making it easy to interface with modern low-voltage MCUs.
2. Write Protection:
   • The WP (Write Protect) pin allows blocking writes to the Status Register or the entire memory array. Connect to VCC for normal operation or to GND/MCU to enable protection.
   • Software Protection: The Status Register also has software-controlled write-protect bits (BP0, BP1) to lock specific memory segments.
3. Power Supply:
   • Place a 0.1µF ceramic decoupling capacitor as close as possible to the VCC and GND pins to filter high-frequency noise.
   • FRAM is less sensitive to power brownouts than EEPROM, but a stable supply is still recommended for SPI signal integrity.
4. PCB Layout:
   • SOIC Package: Keep SPI traces (SCK, MOSI, MISO) short and away from high-noise lines (like switching regulators).
   • WSON Package: Requires a solid thermal pad connection to the PCB ground plane for heat dissipation and electrical stability.
5. Software Driver:
   • No "Write Busy" Polling: Unlike EEPROM, you do not need to poll a status bit to check if a write is complete. The write finishes at the end of the SPI byte transfer. This simplifies code significantly.
   • Addressing: Uses 16-bit addressing (A16) for the full 64KB range.
