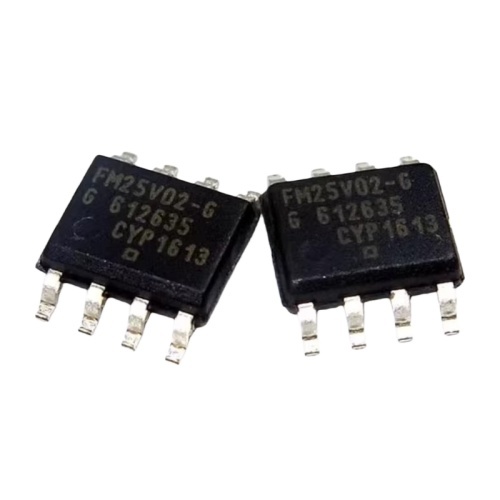

FM25V02A-G(TR)

Introduction

The FM25V02A-G(TR) is a 256 Kbit (32 KB) non-volatile Ferroelectric Random Access Memory (FRAM) developed by Cypress (now Infineon). It combines the high-speed read/write performance of RAM with the non-volatile characteristics of ROM/Flash, featuring extremely high write endurance and low power consumption. The device uses the industry-standard Serial Peripheral Interface (SPI), supporting a maximum clock frequency of 20 MHz. It allows direct read/write operations at bus speed without write delays.

Compared to traditional EEPROM or Flash memory, the FM25V02A offers not only fast write speeds (no wait time) but also significantly higher endurance (up to 1014 read/write cycles), making it ideal for applications requiring frequent data logging, such as smart meters, industrial data recorders, and automotive black boxes. The suffix (TR) indicates the product is packaged in Tape & Reel, suitable for automated pick-and-place production; -G denotes a RoHS-compliant, lead-free package.

Key Features

Memory Core

• Type: Ferroelectric RAM (FRAM / F-RAM).
• Capacity: 256 Kbit (organized as 32K x 8-bit).
• Non-Volatile: Data retention for over 10 years after power-off (typical).
• High Endurance: Supports unlimited reads and up to 1014 write cycles (far exceeding EEPROM's 106 and Flash's 104).
• High-Speed Write: No write delay; write operations complete instantly at bus speeds up to 20 MHz.

Interface & Communication

• Interface: 4-wire SPI (SCK, SI/MOSI, SO/MISO, CS#).
• SPI Modes: Supports Mode 0 (0,0) and Mode 3 (1,1).
• Instruction Set: Supports standard SPI commands (READ, WRITE, WREN, WRDI, RDSR, etc.) and specific FRAM instructions (e.g., Fast Write).

Performance & Reliability

• Data Retention: 10 years at 85°C.
• Low Power Consumption:
  • Active Current (20 MHz): Approx. 4 mA (typical).
  • Standby Current: < 5 µA (typical).
• Write Protection:
  • Software Write Protection (via Status Register).
  • Hardware Write Protection (WP# pin, supported on some packages).
• Security Features: Supports software/hardware reset and a unique 64-bit serial number (on some batches).

Package & Environment

• Package: SOP-8 (8-pin Small Outline Package), available in wide-body (208mil) or narrow-body (150mil).
• Operating Voltage: 2.7V to 3.6V (compatible with 3.3V systems).
• Operating Temperature: Industrial grade -40°C to +85°C.
• Compliance: RoHS compliant, Lead-free (Pb-free).

Typical Specification Table

Note: On some SOP-8 packages, the WP# and HOLD# pins may be multiplexed as SIO2 and SIO3 (QSPI mode). Please refer to the datasheet for details.

Typical Applications

• Smart Metering: Smart electricity, water, and gas meters (frequent logging of consumption data requiring high endurance).
• Industrial Automation: PLC parameter storage, robot arm position recording, industrial black boxes (event logging).
• Automotive Electronics: Dashcams, Tire Pressure Monitoring Systems (TPMS), car audio settings memory, ECU data logging.
• Medical Devices: Portable monitor patient data buffering, pacemaker parameter storage.
• Consumer Electronics: Printer ink cartridge counting, game console save data, smart home device power-fail memory.
• Internet of Things (IoT): Sensor node history data buffering, gateway configuration storage.

Development & Usage Notes

1. SPI Driver: The FM25V02A uses the standard SPI protocol. Most MCUs (e.g., STM32, ESP32, Arduino, ArteryTek AT32) have hardware SPI peripherals that can drive it directly.
2. Write Protection: Write protection is usually enabled by default on power-up. The WREN (Write Enable) command must be sent before any write operation.
3. Bus Speed: Although it supports 20 MHz, it is recommended to lower the SPI clock on PCBs with long traces or high interference to ensure stability.
4. Software Compatibility: Its instruction set is very similar to standard SPI EEPROMs (like the 25Cxxx series). Existing EEPROM driver code can often be ported with minor modifications (mainly removing the write-delay wait).
5. Competing Products:
   • TI (Texas Instruments): FRAM series (e.g., FM24V10, FM28V100) with similar interfaces and features.
   • Fujitsu: Early leader in FRAM (now partially acquired by TI).
   • EEPROM Alternative: If high-frequency writing is not required, AT24C256 EEPROM can be used (lower cost, but slower).
   • Flash Alternative: For larger capacity, W25Q32 SPI Flash can be used, but note the sector erase mechanism and lower endurance of Flash.
