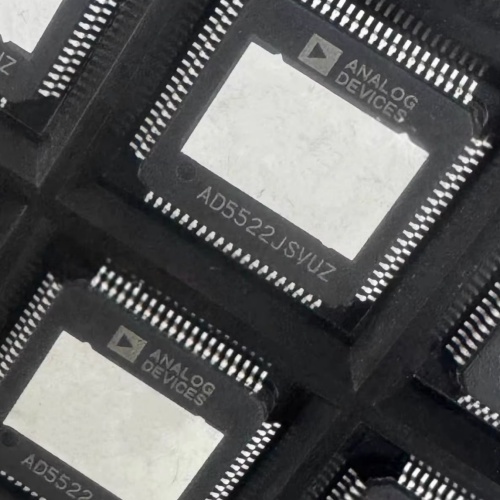

AD5522JSVUZ is a high-precision, 16-channel, mixed-signal test instrument ASIC designed and manufactured by Analog Devices Inc. (ADI). It belongs to ADI’s flagship AD552x family, engineered specifically for automated test equipment (ATE), semiconductor parametric testers, and high-end functional test systems, where ultra-low noise, exceptional DC accuracy, and channel density are paramount. The “JSVUZ” suffix denotes the 100-lead TQFP package (14 mm × 14 mm) with exposed thermal pad, qualified for –40°C to +85°C operation, and featuring lead-free, RoHS-compliant, and halogen-free construction.
â ī¸ Critical Clarification:
The AD5522JSVUZ is not a general-purpose DAC or analog front-end — it is a full-featured, integrated parametric measurement unit (PMU). Each of its 16 identical channels combines:
- A 16-bit precision voltage source (±10 V, 0.003% FSR accuracy),
- A 16-bit precision current source/sink (±100 mA, 0.01% FSR accuracy),
- A 24-bit Σ-Δ ADC with programmable gain (up to ×128),
- Four-quadrant force-sense capability,
- On-chip calibration engines,
- Per-channel digital I/O and timing control,
- And comprehensive safety and protection circuitry (e.g., overvoltage, overcurrent, thermal shutdown).
It is intended for use in high-end ATE platforms, not embedded or standalone applications — requiring external FPGA/ASIC host control, precision power supplies, and rigorous thermal management.
Introduction
The AD5522JSVUZ represents the pinnacle of integrated precision instrumentation ICs — a true “channel-on-a-chip” solution that replaces dozens of discrete components (DACs, ADCs, op-amps, current sources, relays, protection FETs, and calibration references) with a single, metrology-grade ASIC. Its architecture enables simultaneous sourcing and measuring (force-sense) on all 16 channels with sub-µV/µA resolution, < 100 nV/√Hz input-referred noise, and < 0.1 ppm/°C drift — performance previously achievable only with modular PXI or VXI instruments costing 10× more.
Key innovations include:
đš True four-quadrant operation per channel: Source/sink voltage and current independently — essential for characterizing diodes, transistors, MEMS, and battery cells;
đš Integrated auto-calibration: On-chip temperature sensors, precision resistors, and reference buffers enable periodic self-calibration without external equipment — critical for drift-free 24/7 production testing;
đš Sub-ns timing resolution: Dedicated per-channel sequencer with 1 ns time-stamp resolution supports high-speed parametric sweeps (e.g., Id-Vg, Id-Vd, C-V) and transient analysis;
đš Hardware safety interlocks: Per-pin overvoltage (±20 V), overcurrent (±120 mA), and thermal fault detection — with < 100 ns response time and automatic channel disable.
The JSVUZ package (100-lead TQFP, 14 mm × 14 mm) features a large exposed thermal pad (EP) that — when soldered to a multilayer PCB with ≥ 800 mm² copper area and ≥ 36 thermal vias — achieves θJA ≈ 12°C/W, enabling full 16-channel simultaneous operation at ambient temperatures up to +70°C.
Key Features
â
16-Channel Parametric Measurement Unit (PMU):
• Each channel: independent 16-bit voltage source (±10 V), 16-bit current source/sink (±100 mA), 24-bit ADC (100 dB SNR), force-sense topology;
• Four-quadrant operation: V-source/I-sink, V-sink/I-source, etc. — no external relays needed.
â
Metrology-Grade Accuracy & Stability:
• Voltage source accuracy: ±0.003% FSR (–40°C to +85°C);
• Current source accuracy: ±0.01% FSR (–40°C to +85°C);
• ADC integral nonlinearity: ±0.5 ppm;
• Input-referred noise: < 100 nV/√Hz @ 1 kHz, < 1 µV p-p (0.1–10 Hz);
• Offset drift: < 0.1 ppm/°C, gain drift: < 0.5 ppm/°C.
â
Integrated Calibration & Diagnostics:
• On-chip 5 ppm/°C reference, matched resistor arrays, and temperature sensors;
• Full internal calibration sequence (offset/gain/linearity) executed in < 500 ms per channel;
• Real-time health monitoring: die temperature, supply rail integrity, open/short detection.
â
Ultra-High-Speed Timing & Sequencing:
• Per-channel sequencer with 1 ns time-stamp resolution;
• Hardware-triggered sweep modes: linear, logarithmic, custom waveforms;
• Simultaneous sampling across all 16 channels at up to 100 kSPS.
â
Robust Protection & Safety:
• Per-pin OV/OC/OT protection with hardware response < 100 ns;
• Automatic channel disable and system interrupt assertion;
• Isolated digital interface (LVDS or CMOS) — prevents ground-loop coupling.
â
Thermally Optimized TQFP-100 (JSVUZ):
• 14 mm × 14 mm footprint with 4.5 mm² exposed copper pad;
• Supports continuous 16-channel operation at +70°C ambient — verified with 4-layer PCB, 2 oz copper, and forced airflow.
Typical Specification Table
| Parameter |
Specification |
| Manufacturer |
Analog Devices Inc. (ADI) |
| Product Series |
AD552x Family (Parametric Measurement Units) |
| Model |
AD5522JSVUZ |
| Function |
16-Channel Precision PMU ASIC |
| Channels |
16 identical, fully independent |
| Voltage Source Range |
±10 V (4-quadrant), 16-bit, ±0.003% FSR accuracy |
| Current Source/Sink Range |
±100 mA (4-quadrant), 16-bit, ±0.01% FSR accuracy |
| ADC Resolution |
24-bit Σ-Δ (100 dB SNR, ±0.5 ppm INL) |
| Noise (input-referred) |
< 100 nV/√Hz @ 1 kHz; < 1 µV p-p (0.1–10 Hz) |
| Timing Resolution |
1 ns timestamping; hardware sequencer per channel |
| Calibration Time |
< 500 ms per channel (full offset/gain/linearity) |
| Protection Response Time |
< 100 ns (OV/OC/OT) |
| Operating Temperature |
–40°C to +85°C (ambient) |
| Package |
100-Lead TQFP with Exposed Pad (JSVUZ) |
| RoHS / Green |
Yes (Pb-free, Halogen-free) |
| Interface |
LVDS or CMOS parallel bus (host FPGA required) |
Typical Applications
đš Semiconductor ATE Platforms: Production test of analog/mixed-signal ICs (op-amps, ADCs, DACs, power management), RF transceivers, and MEMS devices — leveraging 16-channel parallelism and sub-ppm accuracy for high throughput and low test uncertainty.
đš Automotive Electronics Test: Characterization of battery management ICs (BMICs), motor drivers, and sensor signal conditioners — using four-quadrant sourcing to emulate cell voltages and load currents.
đš Research & Metrology Labs: Quantum device characterization (qubits, Josephson junctions), low-T physics experiments, and NIST-traceable calibration standards — enabled by ultra-low noise and drift.
đš High-End Functional Test Systems: Power amplifier linearity testing (ACPR/EVM), PLL jitter analysis, and high-speed SerDes margining — via synchronized sourcing and digitizing with picosecond timing alignment.
đš Battery Cell Manufacturing Test: Formation, grading, and EOL testing of Li-ion/LiPo cells — using precise current forcing and voltage measurement with real-time impedance extraction (via AC+DC superposition).
Development & Design Notes
đ§ Thermal Management (Non-Negotiable):
- The AD5522 dissipates up to 4.2 W (16 channels @ full drive). Use a 4-layer PCB with internal 2 oz copper planes, ≥ 800 mm² EP copper area, and ≥ 36 thermal vias (0.3 mm). Add forced air (≥ 200 LFM) or a small heatsink on the EP — mandatory for sustained operation.
- Monitor die temperature via
TEMP register readback; throttle channel count if TJ > 110°C.
đ§ Power Supply Design:
- Requires three independent low-noise supplies:
• AVDD = 5.0 V ±1% (analog core, 2.5 A);
• DVDD = 3.3 V ±1% (digital logic, 1.2 A);
• VSUP = ±15 V (for output stage, ±1.5 A each).
- Decouple each supply with 10 µF tantalum + 100 nF X7R ceramic within 2 mm of pins. Use separate analog/digital ground planes — tie at single point under AD5522.
đ§ Interface & Host Requirements:
- Communicates via parallel LVDS bus (32-bit data + control) — requires a high-speed FPGA (e.g., Xilinx Kintex/UltraScale+) with dedicated LVDS I/O banks.
- No SPI/I²C — configuration and data transfer occur at īŊ200 MHz clock rate. ADI provides reference HDL cores and PCIe/IP integration examples.
đ§ Calibration & Traceability:
- Factory calibration covers initial offsets/gains; field recalibration uses on-chip references and is traceable to NIST via ADI’s calibration certificate.
- For ISO/IEC 17025 compliance, perform annual external calibration using metrology-grade sources (e.g., Keysight B2900 series) — ADI provides detailed calibration procedure documents.
đ§ Reliability & Functional Safety:
- FIT rate = 18 failures per billion hours, with FMEDA report supporting IEC 61508 SIL-2 and ISO 26262 ASIL-B.
- Implement dual-channel redundancy for safety-critical measurements (e.g., compare Channel 1 & 2 readings — alarm on >10 µV mismatch).
